Wood Block Cutter Pallet Block Saw Machine

This video shows the real working process of the wood block cutter pallet block saw machine in factory testing. You can clearly see how long wood strips are fed into the machine, how the circular saw blade performs continuous cutting, and how finished pallet blocks are discharged smoothly. The video demonstrates cutting speed, surface quality, operational safety, and overall production efficiency.

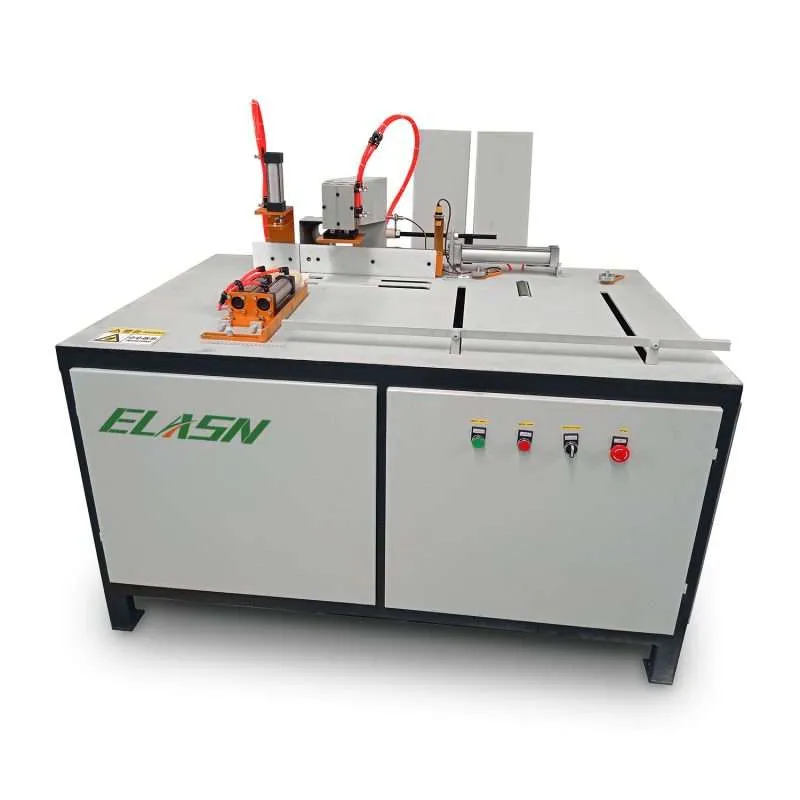

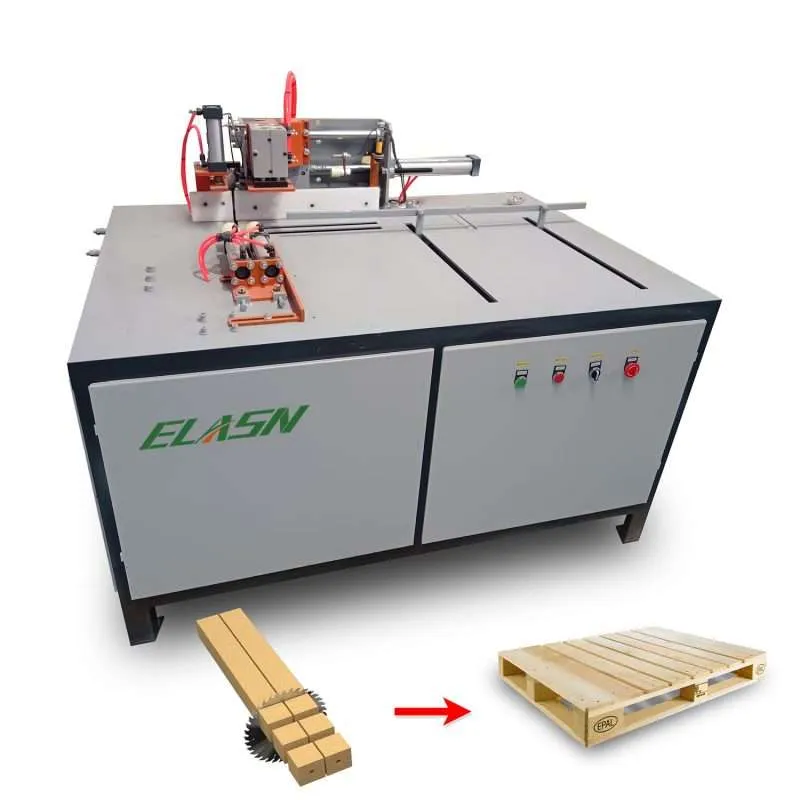

The pallet block cutting machine is a semi-automatic wood processing machine used to cut long wood blocks (typically 1000mm or 1200mm) into smaller pallet blocks with precise and consistent length.

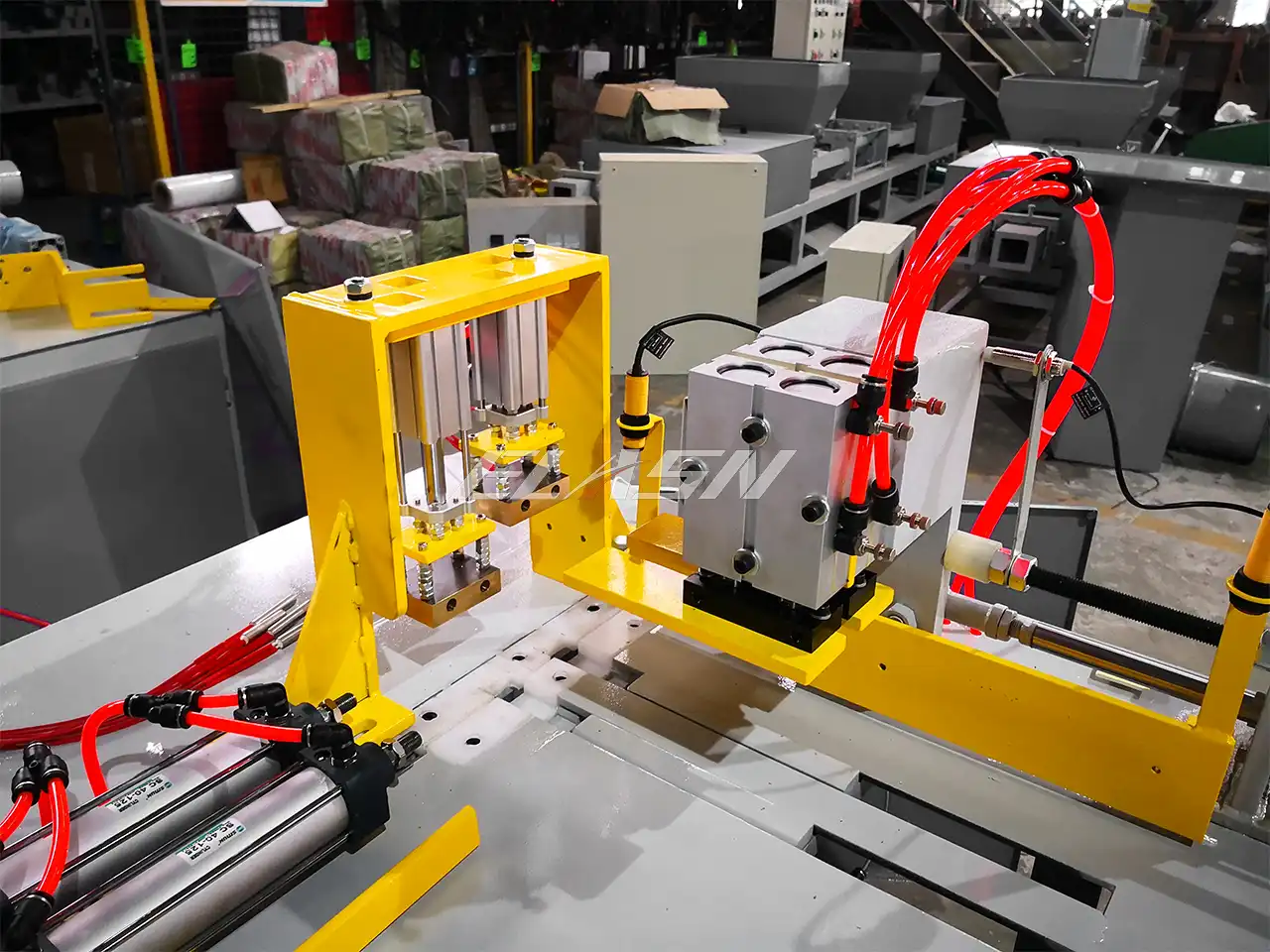

Equipped with a high-speed circular saw blade and pneumatic feeding system, this machine ensures smooth cutting surfaces, high dimensional accuracy, and safe operation. The cutting height and block length can be adjusted according to different pallet standards such as EPAL, ISO, US pallet, and customized sizes.

This wood block cutter is especially suitable for:

• Solid wood pallet block production
• Hollow pallet block production
• Multi-layer laminated pallet blocks
• Recycled wood pallet block processing

Average production capacity reaches 1800–2000 blocks per hour, making it ideal for medium to large pallet factories.

The wood block cutter pallet block saw machine plays a key role in modern pallet production systems, where long wood strips or laminated beams are converted into standardized pallet blocks for assembly.

In industrial pallet factories, this machine is often connected with pallet nailing machines, automatic stacking systems, and conveyor lines to achieve continuous production of block pallets and stringer pallets. Compared with manual cutting methods, the semi-automatic system significantly improves consistency, reduces labor dependency, and ensures stable block dimensions for downstream pallet assembly.

This pallet block cutting machine can process a wide range of wood materials used in pallet manufacturing, including pine, poplar, eucalyptus, hardwood strips, recycled pallet wood, and laminated engineered blocks.

For optimal performance, wood strips should maintain stable moisture content and consistent cross-section dimensions to ensure accurate cutting, smoother surfaces, and longer blade service life.

1. Long wood strips or laminated beams are manually or automatically fed into the cutting position.
2. Pneumatic system pushes the material forward at a fixed stroke.
3. Circular saw blade cuts the wood into equal-length pallet blocks.
4. Finished blocks are discharged automatically onto output table or conveyor.

The operator only needs to load material and collect finished blocks — no direct contact with saw blade, ensuring high safety.

We provide full voltage and frequency customization for different countries and regions.
The wood block cutter machine can be manufactured according to your local power standard before delivery.

We support customized voltage, phase and frequency, including:
110V / 220V / 230V / 380V / 400V / 415V
Single phase or three phase
50Hz or 60Hz

The electrical system (motor, inverter, control panel and wiring) will be adjusted according to your local grid standard, ensuring safe operation without additional transformer.

• High precision : totally vertical, smoothly for intersecting surface
• High efficient: cut blocks in 1800pcs/h, can work in 24h.
• Easy operation: 1 worker can handle
• Low cost: low waste in cutting lose.
• Size adjustment: Can cut different size of block.
• Safety: worker no touch to saw in whole process
• Small occupied area: <2m³

Wood block cutting machine is used for cutting wood strips to wood block. And the pallet block is used to make the wood pallet base, which is for the transportation or storage pallet. Besides, the final pallet block could get the E1 grade. While, the pallet block could be solid without hole in the center, and also could be hollow.
